Product Summary

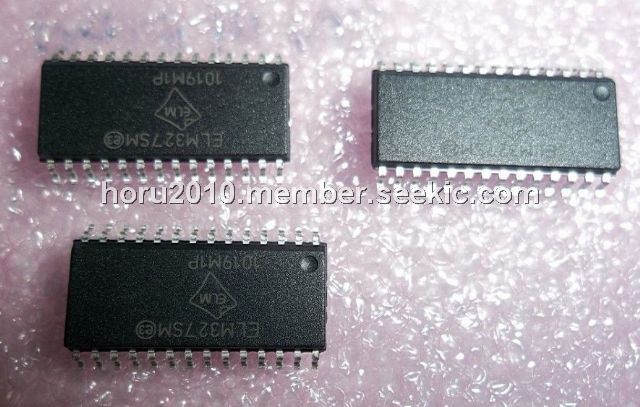

The ELM327SM is an OBD to RS232 Interpreter. The ELM327SM is designed to act as a bridge between these On-Board Diagnostics (OBD) ports and standard RS232 ports. The ELM327SM requires few external components to make a fully functioning circuit. The following pages discuss the interface details, and show how to use the IC to ‘talk’ to your vehicle, then concludes with two schematics to get you started. The applications of the ELM327SM include Diagnostic trouble code readers, automotive scan tools, and teaching aids.

Parametrics

ELM327SM absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -40℃ to +85℃; (3)Voltage on VDD with respect to VSS: 0 to +7.5V; (4)Voltage on any other pin with respect to VSS: -0.3V to (VDD + 0.3V).

Features

ELM327SM features: (1)Supports 12 protocols; (2)Automatically searches for a protocol; (3)Fully configurable with AT commands; (4)RS232 baud rates to 500Kbps; (5)Voltage input for battery monitoring; (6)Low power CMOS design.

Diagrams

ELM327SM block diagram
